3D Potter Scara HD printer

Ontdek de Scara HD van 3D Potter

De grootste Scara printer van 3D Potter, om grote constructies te printen, zoals volwaardige structuren en muren.

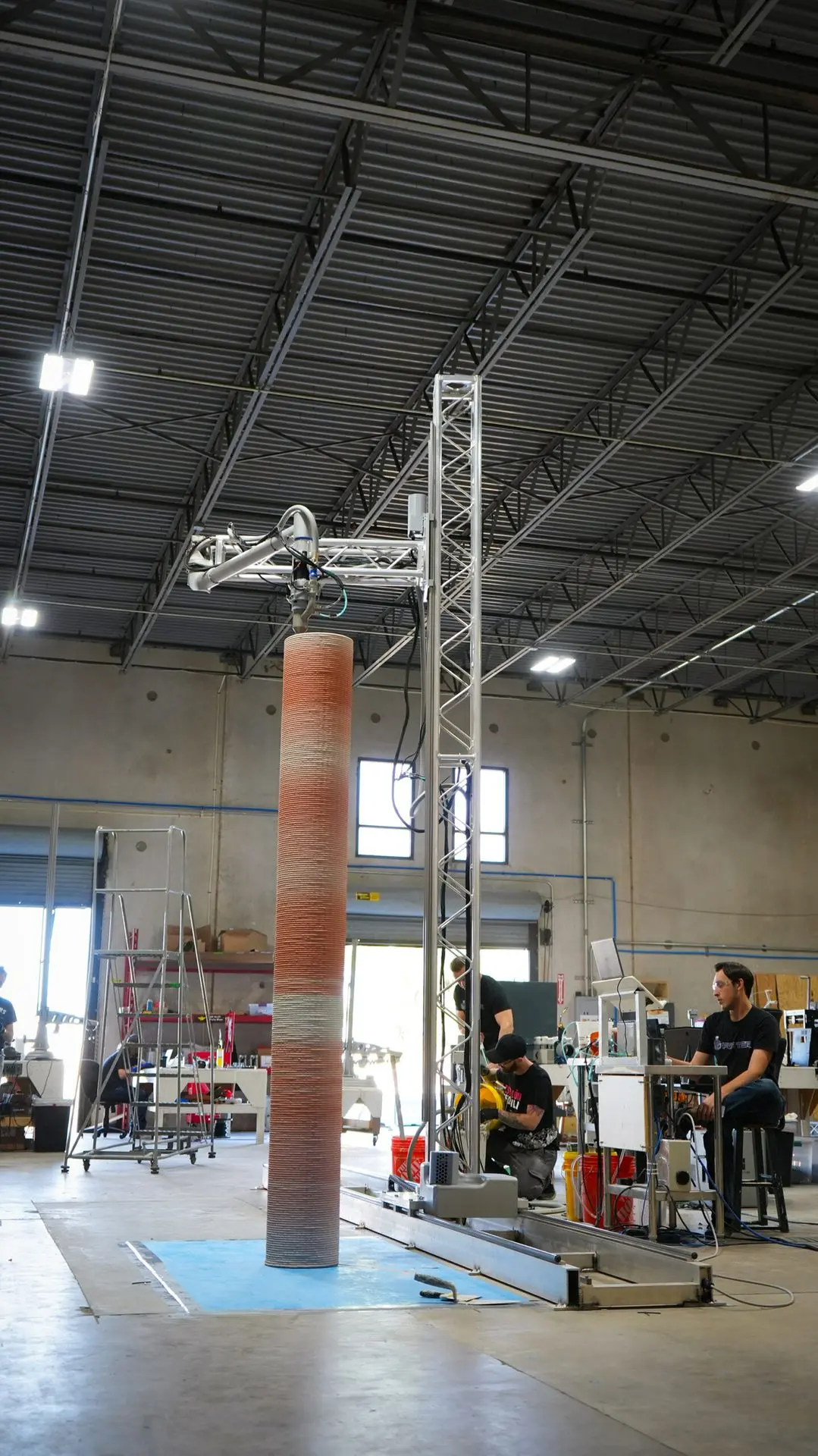

De HD printer staat op een rail van 6m en is ideaal voor:

For printing larger volumes
For printing at high speeds
For printing with high precision and reliability

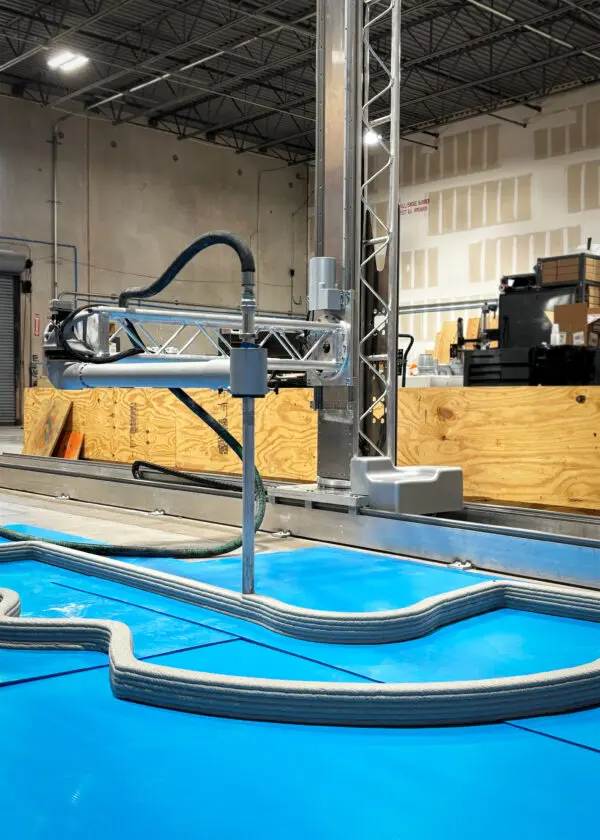

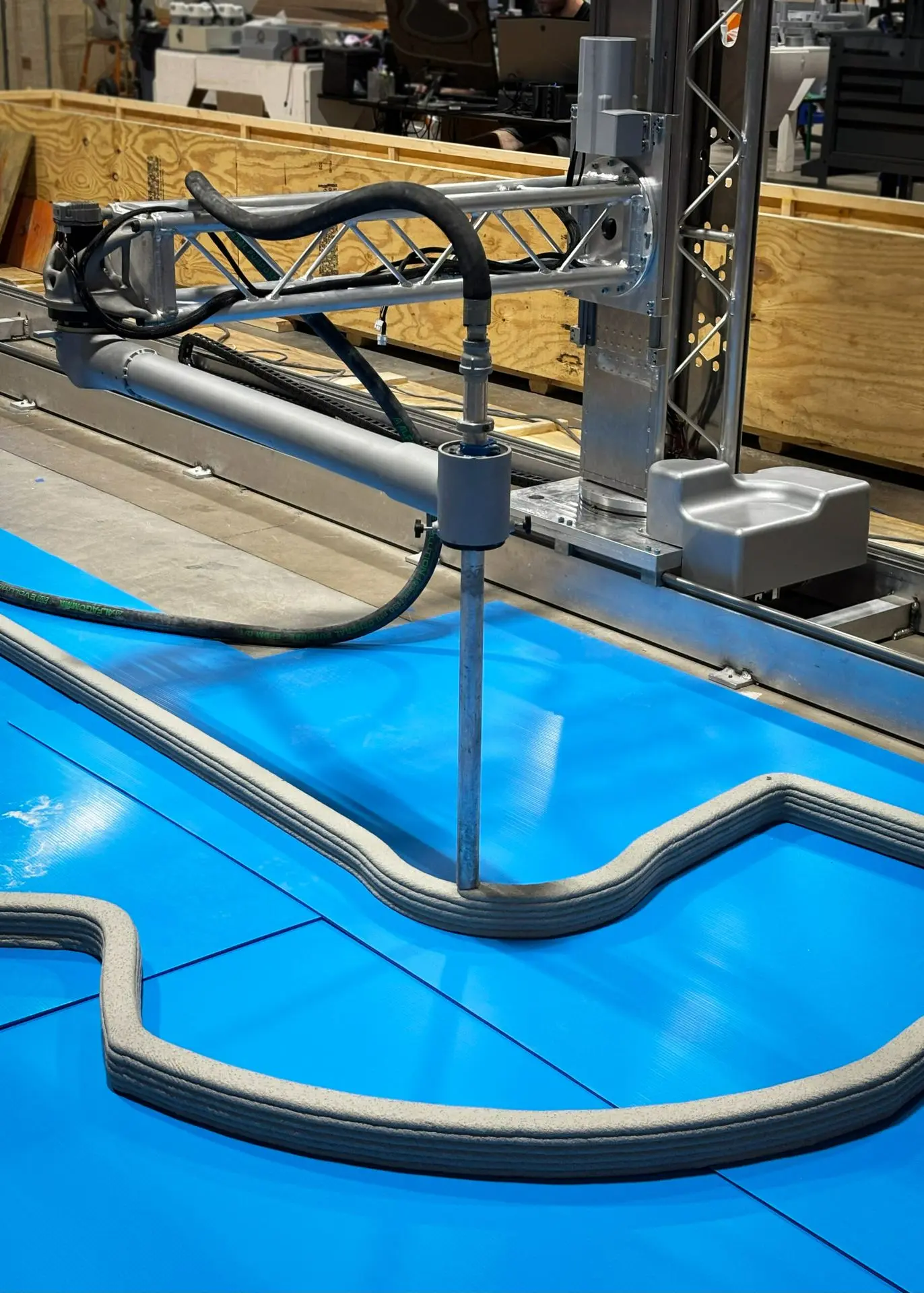

For printing walls and medium-sized constructions

Technical specifications

Bouwvolume: Diameter van 5,6m, met een lengte tot 11m – hoogte: 3m
Print speed: 30-100 mm/s
Motor type: Hybrid Closed Loop Steppers
Space requirements: 15-30 cm clearance outside the print area
Easy maintenance
Wifi enabled
Web browser interface
Power requirements: 230V and 50 Hertz connection

Printgebied voor Scara HD

Beschikbaar op aanvraag
Exacte afmetingen voor de HD kunnen bijgestuurd worden voor uw project
Unique print area: The printing area is unique due to its 360-degree capability. This means that you can create a large object with the printer initially positioned inside the object or structure.
Unique Printing Possibilities: Another unique feature is the ability to print multiple objects within the specified area in sequential mode. For example, you can start printing a specific object on the far left and continue printing these objects until there is no space left.

Looking for even more information? Go to the 3D Potter site

Overview of all printer packages

For testing
cementitious materials

Discover our printer package for research

Up to a diameter of 2m

Discover our printer package with the 3D Potter Scara V4

Up to a diameter of 3m

Discover our printer package with the 3D Potter Scara Elite

Up to a diameter of 3m, with a length of 5-9m

Discover our printer package with the 3D Potter Scara Elite Roadrunner
